Changing the 2D Design Point

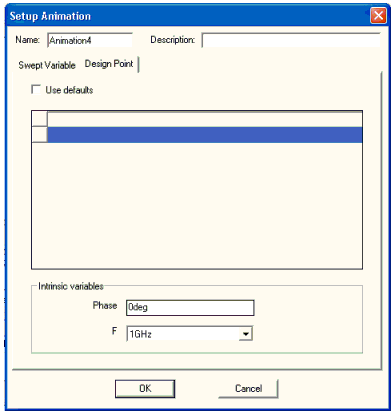

Calculating frames for an animation is equivalent to re-simulating the planar design. You can specify design point parameters for the animation calculations that are different on the ones used in the original simulation. From the Animation Setup window, select the Design Point tab and deselect the Use defaults option. The following fields are displayed:

Make any appropriate changes, then click OK to apply the changes and close the window. Clicking Cancel closes the window without making any changes.
