De-embedding S-Matrices

Complete these steps to compute a de-embedded or phase-rotated S-matrix.

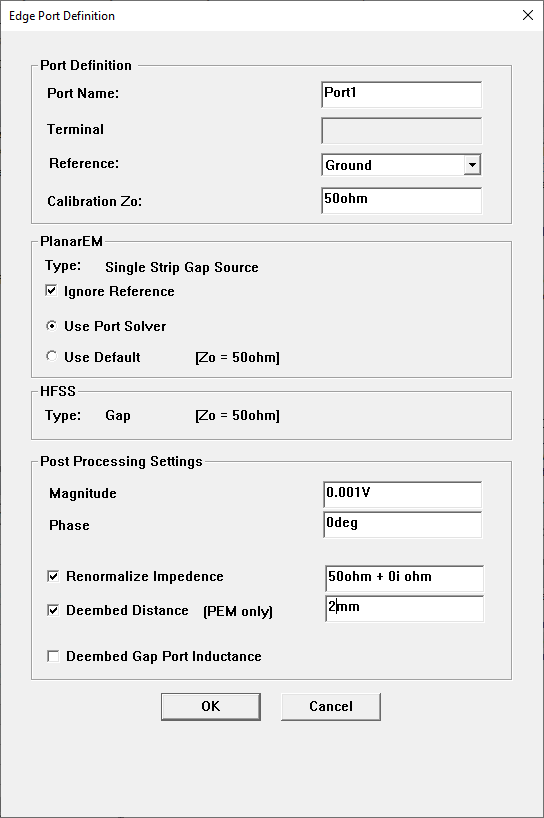

1. From the Project Manager window, expand the Project Tree and the Excitations folder. Then double-click a port to open the Edge Port Definition window.



2. Click Renormalize Impedence and set the amount to a non-zero value.
3. Enter the length of the transmission line to be added in the Deembed Distance field.
4. Click OK to assign that length to the selected port. The 2D Reporter automatically updates its reports to reflect the de-embedded S-matrix.
