Substrate Geometry Definitions

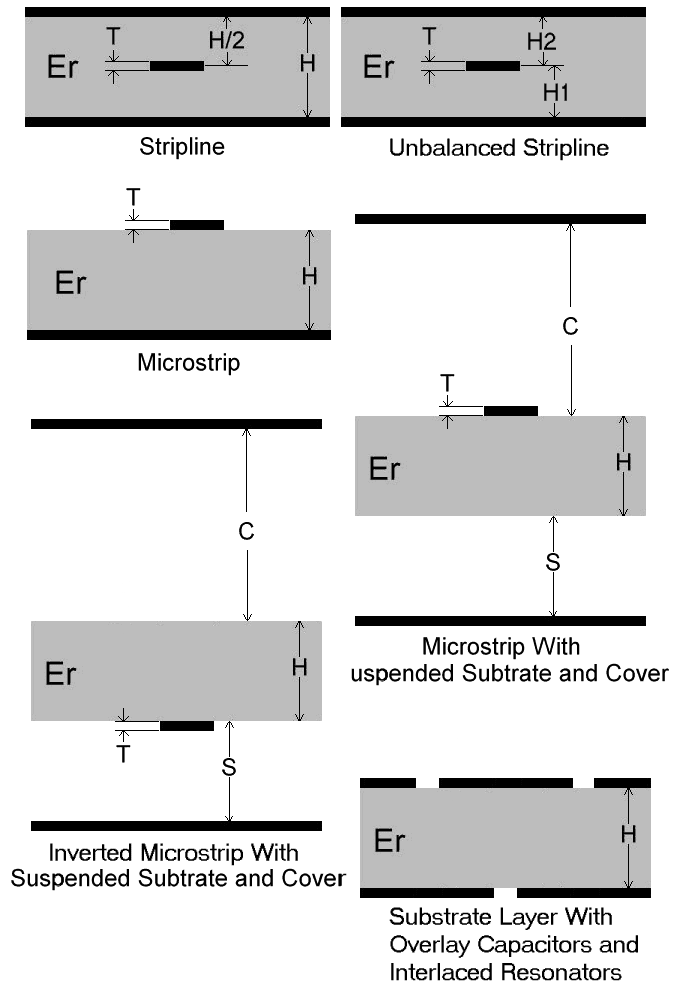

Definitions for stripline and microstrip substrate geometries are shown below:



Variable Definitions:

T	Conductor Thickness
H	Dielectric Height
S	Substrate Elevation over Ground Plane
C	Cover Height above Substrate
