Net Classifications

The following shows how to configure net classification for DDR4.

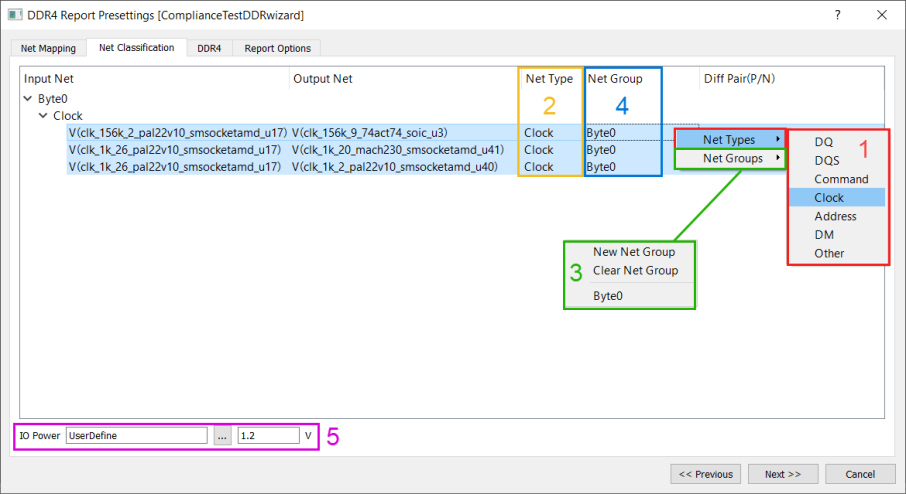

DDR4 Report Presettings Window, Net Classification tab.

  1. Right-click the highlight nets to define Net Type for the chosen nets.
  2. All the net type defined nets shows their net type in the list, otherwise keep it as Others.
  3. Create new net groups or assign nets to a existing group.
  4. Net Group column shows all the net group belongings.
  5. Define the IO power value, using for logic level calculation and other parameters.

The following shows how to configure net classification for GDDR5.

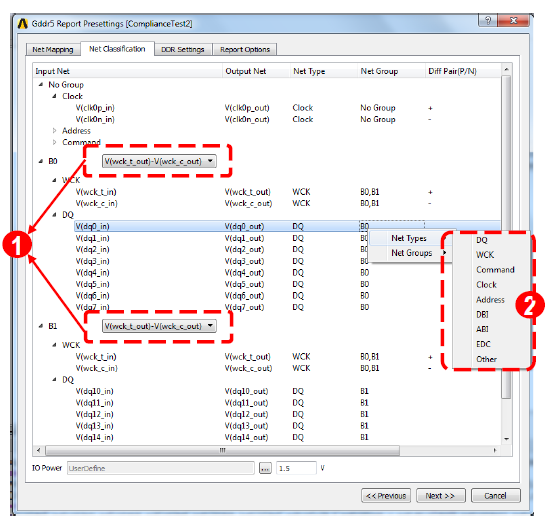

GDDR5 Report Presettings Window, Net Classification tab.

  1. Support same strobe pair using in different Byte-lane group (GDDR5 feature).
  2. More GDDR5 net types are supported.
