Embedded Waveform Viewer

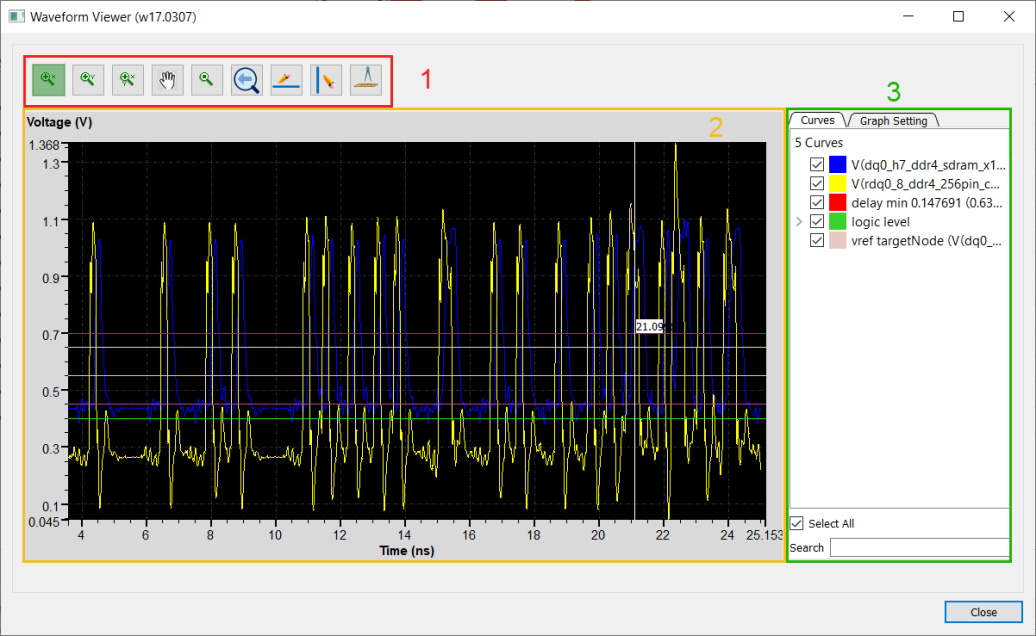

Waveform Viewer Window, Measuring tools.

  1. Tool bar: zoom in, fit view, previous view and measuring tools.
  2. Waveform Plot area.
  3. Curve selection and Graph setting.

Measuring

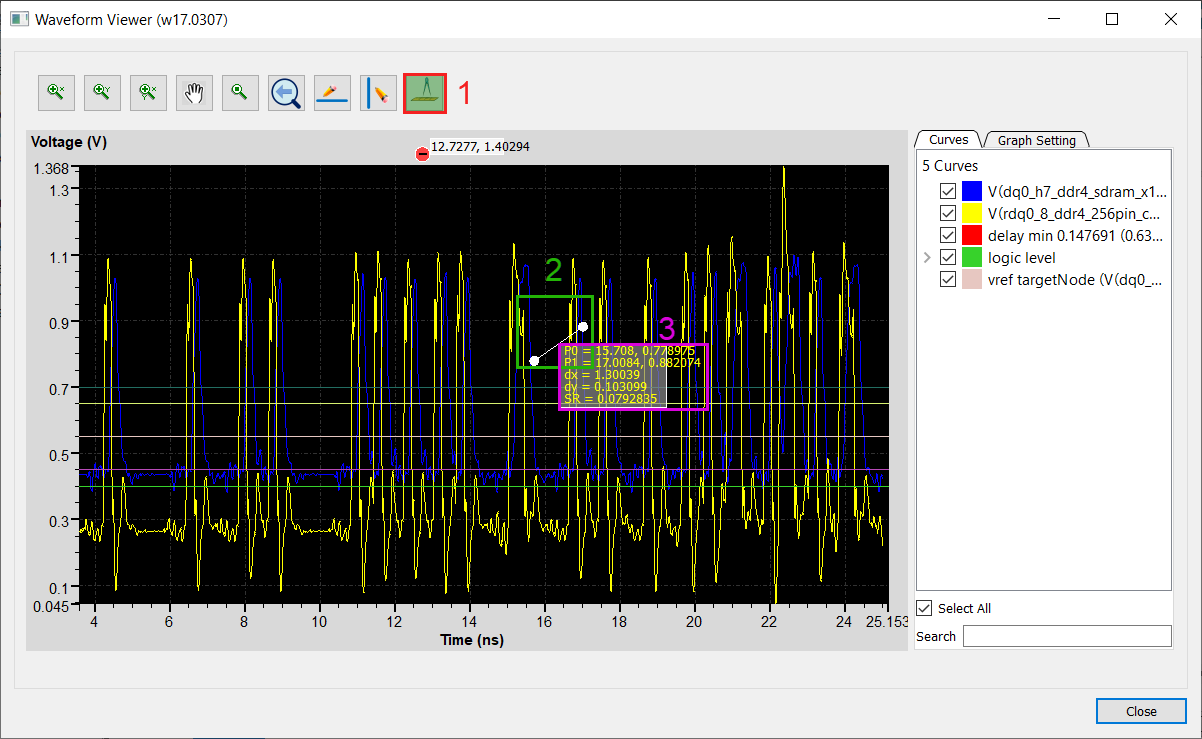

Waveform Viewer Window, Measuring steps.

  1. Click the “measure point” button.
  2. Click in the display to set 2 points.
  3. The delta x, delta y and slope of these 2 points is shown in the display.
