Configuring Shared Web Licensing

Prerequisites: You must have a tenant administrator role.

Shared Web Licensing enables multiple users to simultaneously share a pool of product licenses that are accessed on a cloud-based server hosted by Ansys. For more information, refer to the Shared Web Licensing documentation on the Licensing page of the Ansys Help site.

To configure Shared Web Licensing, you must upload a shared web token file.

  1. Create a shared web token file.
    1. Go to the Ansys ID portal at https://id.ansys.com/ and sign in with your Ansys ID.
    2. Click your profile icon on the main toolbar and select Personal access tokens.
    3. Click Create Token and create a token.
    4. Download the token.

      A JSON file is downloaded.

  2. In Ansys Gateway powered by AWS, go to the Administration > License Settings page.
  3. Locate Shared Web licensing and click Configure.

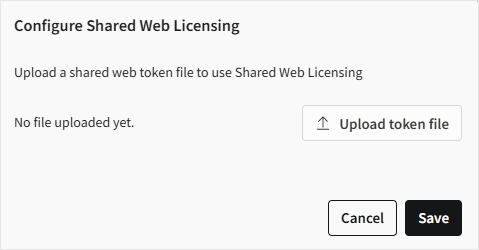

  4. In the configuration dialog, click Upload token file and then select the token file that you downloaded.
  5. Click Save.

    The token expiration date and associated email ID are displayed in the Shared Web licensing section of the License settings page.

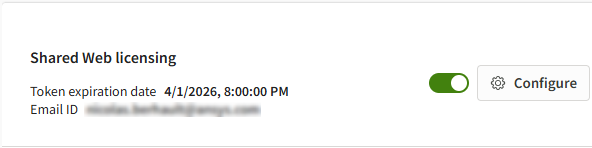

  6. To use Shared Web Licensing, ensure that its toggle is on.

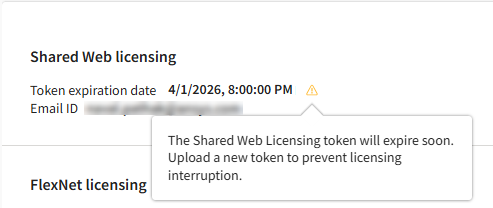

Note: If a token has been uploaded previously, the token expiration date and email address of the Ansys ID account associated with the entitlement are displayed on the License settings page. When the token nears its expiration date, a warning icon is displayed next to the expiration date to provide advance notice of the pending expiry.

An alert is also displayed on the home page. For example:
