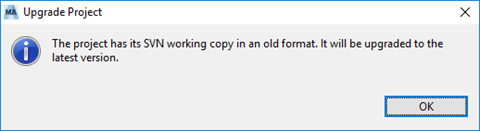

Upgraded of Subversion team connectors

The integrated Subversion team provider has been upgraded to the latest version. The used connector version is now 1.9.3 and is supporting TLS 1.2 security protocol. Note: As a consequence of this upgrade, existing workspaces with shared projects are automatically upgraded to the 1.9 working copy format on first tool start-up.

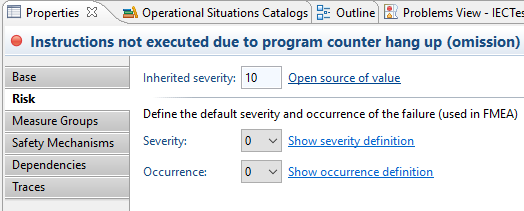

Display origin of severity value for FMEA

Although the failure severity for an FMEA is propagated consistently through the failure net hierarchy, it is sometimes difficult to see from which top-level effect a ranking is coming from. With 2019 R3 it is much easier to simply navigate to the corresponding system level failure via a link in the property view:

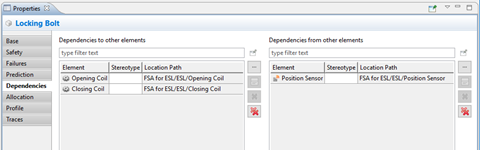

Property page for dependencies

The property view and form editors for SysML dependencies have been completely revised. They now feature a consistent UI with management of both incoming and outgoing dependencies and their corresponding stereotypes. At the same time, former constraints on "requires" and "uses" stereotypes for functions have been relaxed.

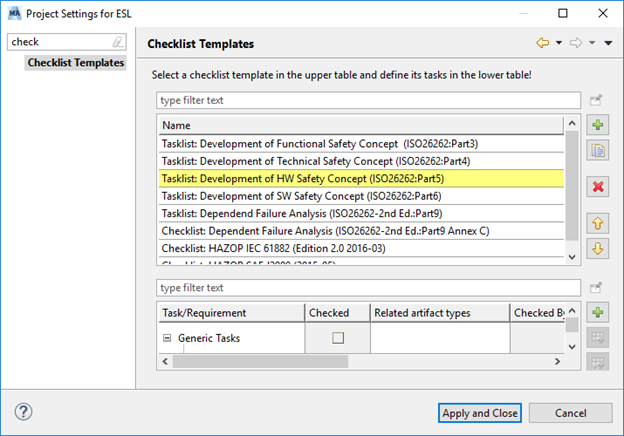

Duplication in project settings

The management of checklist templates and operational situation catalogs has been enhanced. Now, a complete checklist template or situations catalog can be cloned with just one button so that a derivate can be created more easily. This was already working for Mission Profiles and for HAZOP Templates before.
