The equations shown in the last section can be resolved and equivalent results can be calculated by Rocky considering the same input data and boundary conditions. The input parameters for this verification case setup are presented in Table 2.1: Verification case input parameters. and the geometry dimensions are shown in Figure 2.2: Flat surface geometry dimensions..

Table 2.1: Verification case input parameters.

Parameter	Value	Unit
Physical Model:
Thermal	Disabled	-
Normal Force	Hysteretic Linear Spring	-
Tangential Force	Linear Spring Coulomb Limit	-
Adhesive Force	None	-
Rolling Resistance	None	-
Gravity Y	None
Wall Geometry (Flat Surface):
Length (X)	0.25
Length (Y)	0.0
Length (Z)	0.1
Solid Properties:
Particle Diameter	0.1
Particle Density	10,000
Particle-Geometry Dynamic Friction Coefficient	0.2	-
Particle Initial Translational Velocity	3.0
Particle Initial Rotational Velocity	0.0
Solver Parameters:
Simulation Duration	1.0

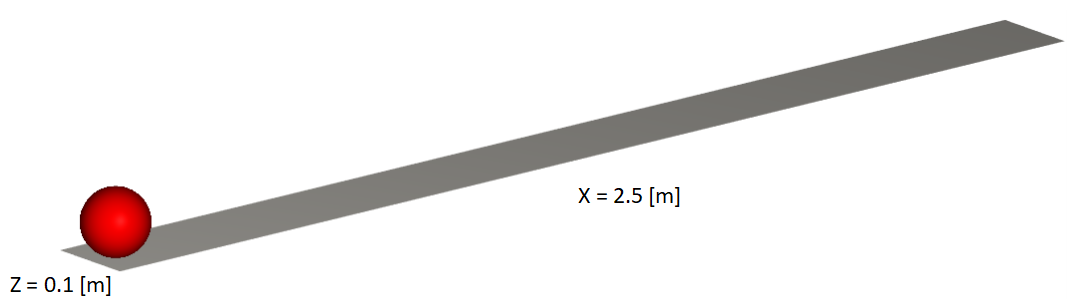

Figure 2.2: Flat surface geometry dimensions.
