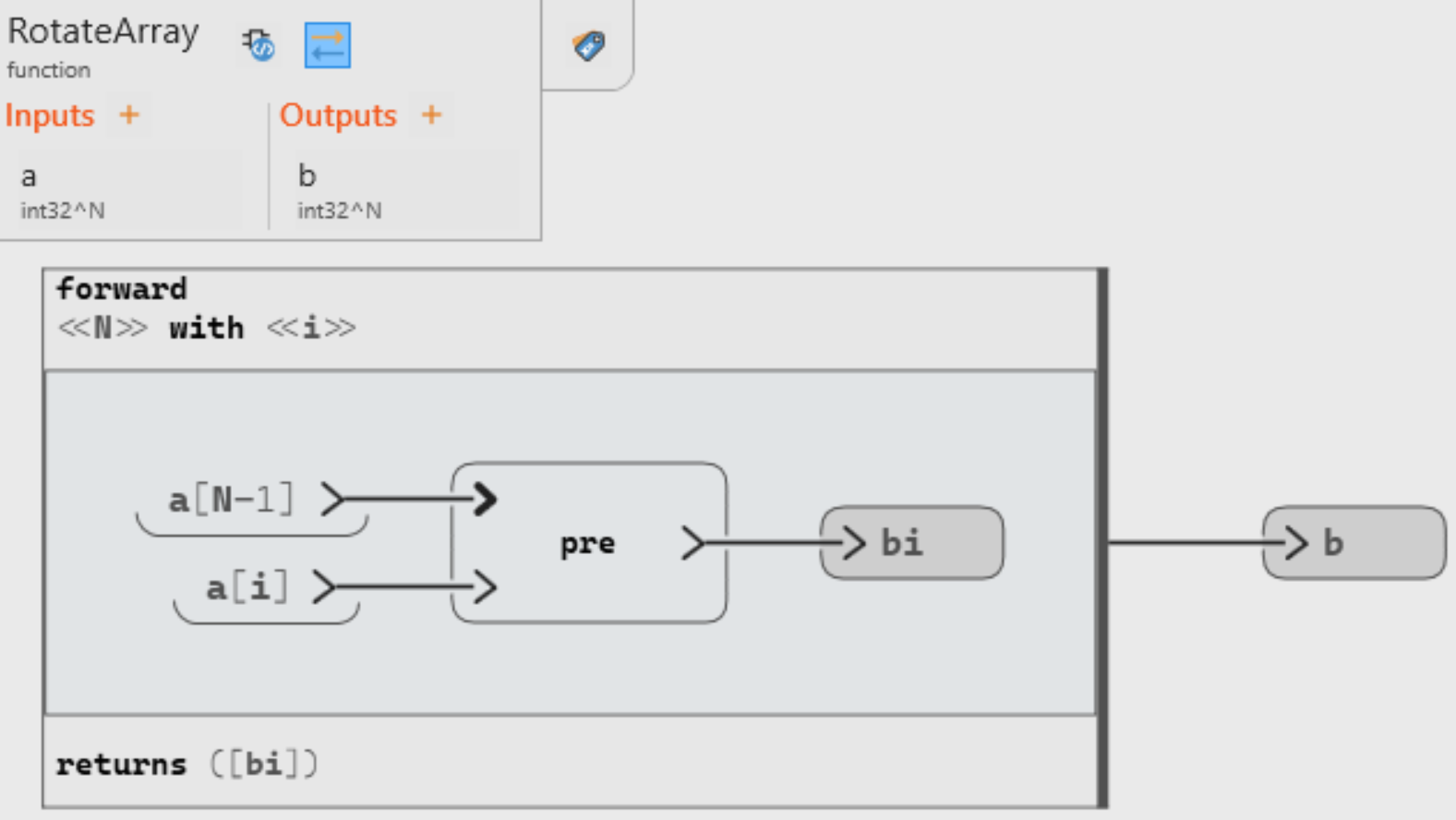

A[N-1] is the direct access to the last element of
A.
The operator pre operates on
A seen as a flow, then returns the value of
A[i] at the previous iteration, that is, at cell index
i-1 at iteration i.
The resulting array is built by the successive values of
bi.
This example illustrates that in a forward, an
input array is considered as a finite flow (the pre
operator refers to the previous value in the array).
Insertion in an Array

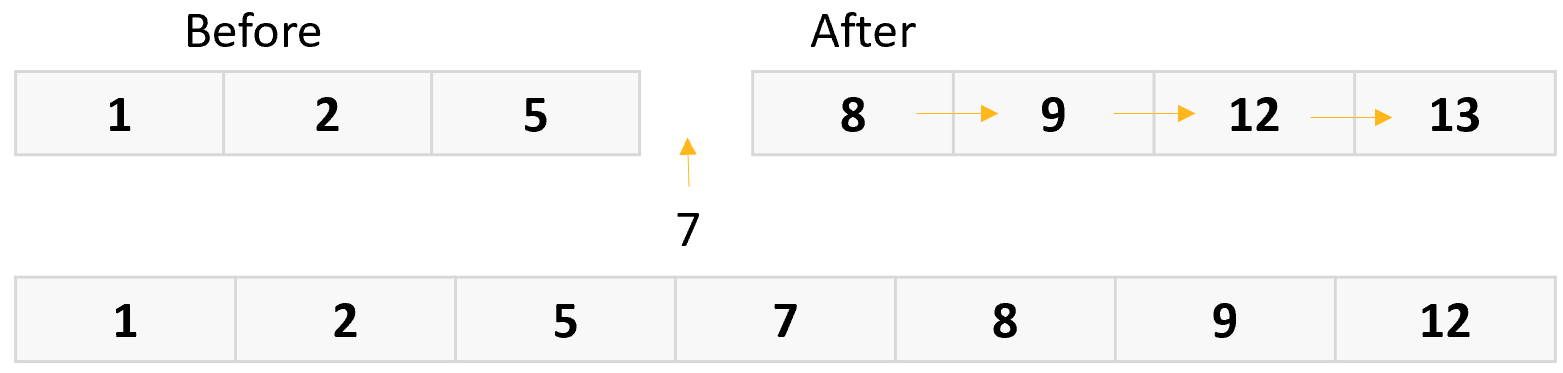

A similar idea of shifting array cells can be used to insert an element in an ordered
array. The insertion consists in finding where to insert, then shift the part of the
array that is after this insertion index. The resulting array being of the same size
as the input one, the last value of the input array is lost:
As explained above, the input array is seen as a finite flow of values (see An Iteration on Flows).
Then, this algorithm can be designed with an automaton in a
forward construct. The automaton has two states:
Before: the state before the insertion point. In
Before, the values are lower than
x to be inserted, then the elements in the output
array are the same as in the input.
After: the state after the insertion point. In
After, the values are shifted to the right, and initialized
with x.
If x is greater than all elements in the array, the transition to
leave Before is never triggered, x is not

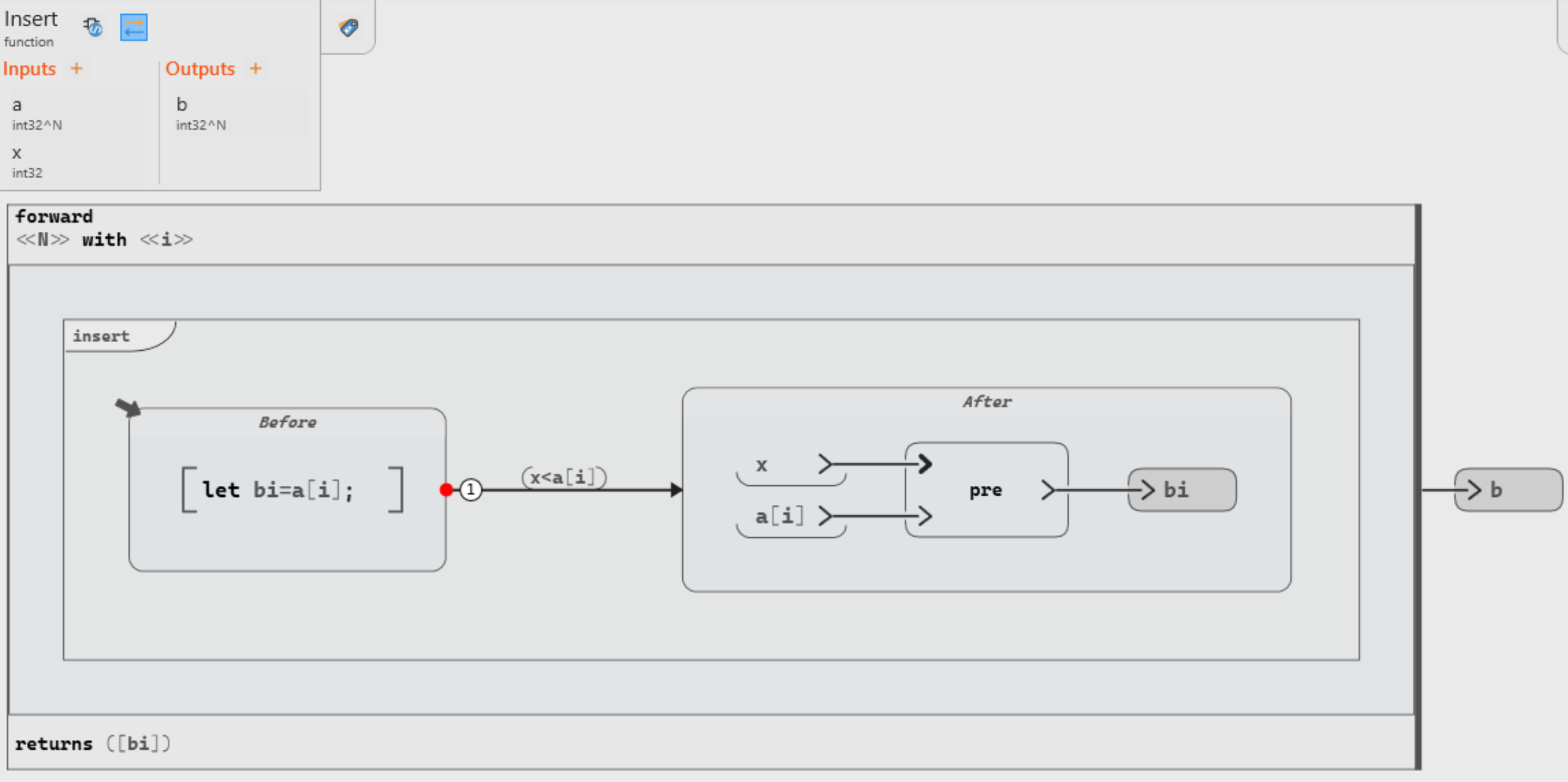

inserted and the output array is the same as the input. The obtained design of the
Insert function in Swan is the
following:
