Layout Components in Mechanical [Beta]

In Mechanical designs, support for layout components is a beta feature supported for the following solution types:

• Steady-State Thermal
• Transient Thermal
• Structural

You do not have to enable any beta option to expose the Layout Component functionality; it is always available for the supported solution types.

One of the primary purposes of layout components is for trace mapping, which is a means of representing printed circuit boards (PCBs) in a simulation model. The electrically conductive, and structurally stiffer, traces of a PCB (including pads, vias, and conductor pour areas) are accounted for without actually including the conductor geometry in the mechanical design. Layout components can also represent semiconductor substrates. Use a previously created HFSS 3D Layout design as a source for Adding a Layout Component to your Mechanical design. The conducting objects are visualized in the layout component, but they are not directly included as 3D geometry. The geometry consists only of the dielectric layer material (such as FR4) and the dielectric fill material specified for signal layers. The conductors are accounted for by locally modifying the material properties (thermal conductivity, density, and specific heat for thermal solutions; Young's modulus, Poisson's Ratio, density, and thermal expansion coefficient for structural solutions). The History Tree lists the source layout component's conducting and dielectric layers and their materials, not the material properties used in the mechanical design.

The signal layers exists in the mechanical design as a contiguous volume of the layer's dielectric fill material. The solver modifies the fill material's properties locally, element-by-element, based on a metal fraction map, which is derived from the source layout's conductor geometry. The resolution of the metal fraction map is user-defined and needs to be fine enough to accurately capture the metal distribution of the board's signal layers. Metal fraction values are also mapped along the full length of vias, through dielectric and signal layers. See Technical Notes: Metal Fraction Map for more details.

Significance of the metal fraction map resolution: You define the number of columns and rows into which the board's length (X dimension) and width or height (Y-dimension) are to be divided. You can specify the resolution numerically or using a slider. Each cell in the resulting grid is assigned a value between 0 and 1, inclusively. The numbers represent the decimal portion of each cell that consists of conducting metal. For example, a value of 0.45 indicates that 45 percent of the cell is metal and therefore, 55 percent is dielectric. The thermal or structural material properties of all elements will be somewhere between the dielectric/fill material and the conductor material, inclusively. When an element extends into two or more grid cells, the element's metal fraction value is interpolated, and the material properties are based on the interpolated metal fraction value.

There are several ways to create a layout component in a Mechanical design:

• Select an existing Ansys ECAD Database (*.aedb) folder previously created by, or imported into, HFSS 3D Layout.
• Any layout component that already exists in the current project's Component Library (under Definitions > Components in the Project Manager) also appears in the Browse Layout Component flyout menu. This menu is accessible when you right-click 3D Components in the Project Manager. Pick the listed name to add another instance of the component or to re-add a previously deleted component.
• Select a layout component file (*.aedbcomp) previously exported from an HFSS 3D Layout design.

Heat Sources

You can define heat sources for steady-state or transient thermal solutions in any combination of the following four ways:

• Specify the Power Dissipated in the Boundary tab of the Insert Layout Component or Edit Layout Component dialog box when adding or editing the component.

This method distributes the specified power uniformly throughout the component volume. It is a convenient way to account for the heat input of many small parts mounted all over a PCB without having to individually include the components and their heat generation excitations.

• Select Use Layout Design Analysis and choose the type of source analysis (DCIR or AC) in the Boundary tab of the Insert Layout Component, or Edit Layout component dialog box when adding or editing the component.

If the source HFSS 3D Layout design includes a DCIR or AC analysis, this method imports the non-uniform power dissipated as heat within the layout component.

• Add objects on the top or bottom faces and assign Heat Generation excitations to them:

This method localizes the primary heat sources and also can account for convective heat dissipation from the faces of the mounted components. Currently, this is the best way to account for major heat contributors, such as integrated circuits and power transistors, since the capability of importing components from the source layout is not yet implemented for layout components in mechanical desings.

While adding a layout component, you can specify convection boundaries on the board's top or bottom faces (in the Insert Layout Component dialog box). When you do so, the area under any adjacent solid objects you add to the board will be filtered out of the convection boundary. This is the desired behavior since the board surface under the mounted electronic parts is not exposed to the ambient air. Select exposed faces of the electronic components you add to the design and assign convection to them.

• Overlay shell objects on the top or bottom board face and use these objects to assign Heat Flux excitations at selected areas:

Like the second method, this one localizes the primary heat sources. Heat flux at a shell object can represent the heat conducted to a PCB from a discrete component, or a group of components, without including additional solid geometry.

Note:

You cannot imprint faces of a layout component to split them into subfaces for the purpose of localized boundaries or excitations. To perform imprinting, if it were supported, you would have to draw an object anyway. So, as an alternative to adding solid parts, you can draw shells overlaid on the top or bottom PCB face for localized boundaries or excitations. Keep the default infinitesimal thickness of the shell object (1e-7 mm) so that the shell doesn't provide a significant parallel heat conduction path. Alternatively, set the shell thickness and material to approximate the thermal conductivity of the mounted component(s) it represents.

Additionally, if you specify convection at the board faces when adding it, do not also assign convection to overlaid shells. Convection boundary areas are not automatically filtered out at shell-to-solid object intersections as they are for solid-to-solid intersections. Assigning convection to the board face and the shell would exaggerate convective heat loss by providing a parallel and redundant heat dissipation path.

You cannot assign boundaries or excitations to layout components in the same way as you do for general objects or faces. That is, you cannot select the layout component or its faces in the Modeler window and execute a boundary or excitation assignment command.

Thermal Boundaries

Two thermal boundaries are supported, and you can assign these to the top or bottom face of the board only as part of the layout component properties. Specifically, the following boundaries are supported. You can assign only one of these boundaries at a time to a given face; they are mutually exclusive:

• Convection
Note:

For layout component (LC) top and bottom faces, you can optionally include radiation effects when defining a convection boundary, regardless of whether you select the Non-Uniform film coefficient option. This capability differs from convection boundaries assigned to general objects or faces, which can only indirectly represent radiation when importing non-uniform coefficients from an Icepak solution in which radiation was enabled.

Warning:

When choosing to import Non-Uniform film coefficients from Icepak, and if radiation was enabled in the source Icepak solution setup, do not enable radiation in the Mechanical LC definition. Doing so would cause redundant radiation effects to be included in the solution, exaggerating the radiative effect. However, if the Icepak setup did not have radiation enabled, you can enable it in the target Mechanical LC definition to account for radiative heat transfer in addition to the convective transfer.

• Temperature

Use this boundary to fix the temperature of the top or bottom face of the layout component to a specified value. The temperature distribution is uniform.

Structural Boundaries and Excitations

There are two structural boundaries and two structural excitations supported for layout components, and you can assign these to the top or bottom face of the board only as part of the layout component properties when adding it. You can assign only one of these boundaries or excitations at a time to a given face; they are mutually exclusive:

• Boundaries:
• Fixed Support
• Frictionless Support
• Excitations:
• Force
• Pressure

The behaviors of these structural LC boundaries are the same as when they are assigned to regular 3D geometry. See the appropriate subtopics under Boundaries for more information.

Example

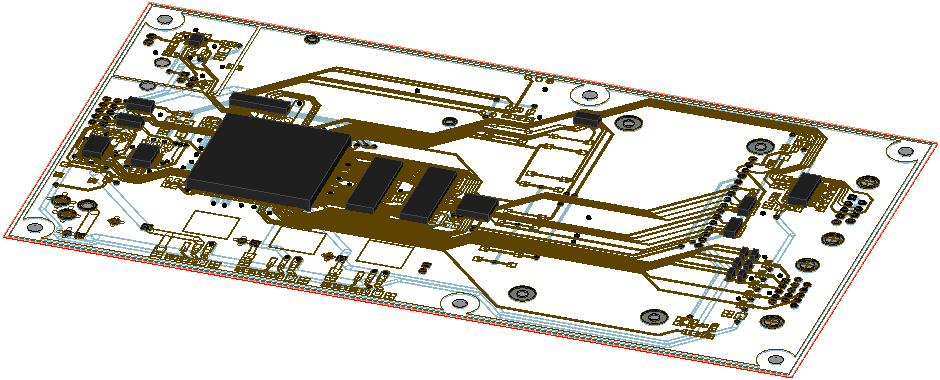

The following figure is a PCB layout component in a mechanical design. The solution type is Steady-State Thermal. In the Object Attributes, the signal layer visualization has been set to Wireframe mode and dielectrics have been hidden. Twenty components (black objects) have been added to the top surface of the board:

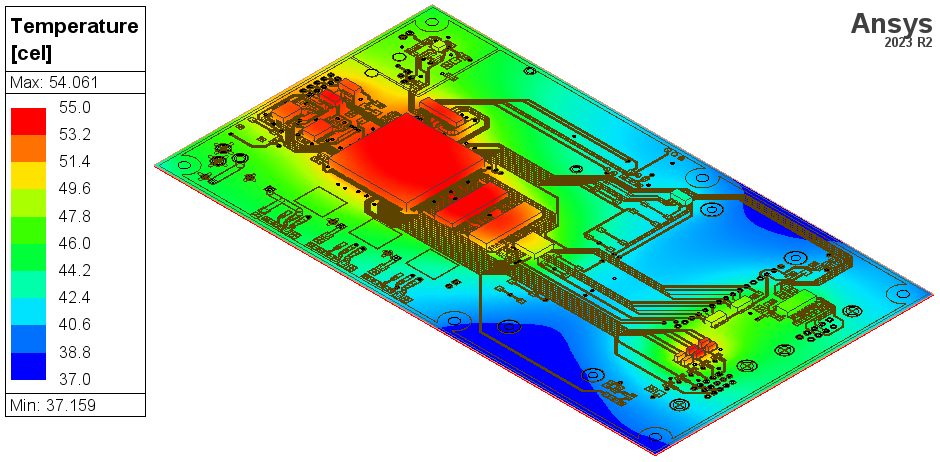

And the following figure is a temperature results overlay of the same model:

For a workflow video of the transient thermal analysis process using a trace mapping example, see Video: Transient Thermal Analysis with Trace Mapping.
