CKT Spice Files

Active filter netlists may be automatically loaded into .CKT simulations applications, such as Microcap.  If an application is installed on the user's system that reads .CKT suffix files, a "Launch" button appears below the netlist that will launch the application and import the netlist, as shown in Figure 1.  This is useful to validate the Nuhertz simulation results, or to simulate with selected physical opamp Spice models.

Note: if more oapmp Spice files are added by the user, some minor editing of the interface may be needed if the new Spice files do not conform to the existing format.

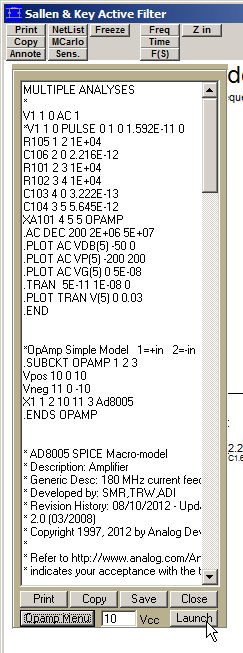

Figure 1:  Launching a .CKT Application With The Imported netlist
