Modules and Namespaces

Module Overview

A Swan module is defined by one module body and/or one module interface

A module is serialized as one or two files:

the module body is serialized into module_name.swan
the module interface is serialized into module_name.swani

Note that a module is a file which name gives the module name. Renaming a module in the modeler will automatically rename the file in the file system.

The body and interface of a module match by name but can be stored in different projects.

A module can contain the following declarations and/or definitions:

constant
type
group
sensor
operator

where

a declaration introduces an element with its kind (type, constant, ...) and the typing information to check its correct usage. No information related to the implementation is given in the declaration.
a definition introduces an element with its value or implementation.

Module Use Cases

There are four use cases:

Public interface of a module: if a module interface is defined, only elements in the interface are public and then usable by another module.
Using interfaces is optional. If only a module body is defined, all its content is public.
Declaration of external (imported) declarations: any element declared but not defined is considered as imported. Its corresponding definition is directly implemented in C.
Software Architectural Design: the software architecture can be defined through its modules and interfaces to specify the components and data exchanged between components. The implementation can be provided later in the module body.
Design test independently of the implementation: providing only declarations in the interface of a module allows the test manipulating a type or an operator without looking at its implementation, and then focus the test objective on the functional behavior.

Namespace Overview

Namespaces allow to organize modules. A namespace can contain namespaces and modules (but no declarations or definitions).

A module cannot contain another module.

Namespaces avoid naming collisions between modules. Two modules can have the same name provided that they are not in the same namespace. Namespaces can be seen as folders.

Namespaces are denoted with a path in the module declaration, the path starting from the top-level namespace.

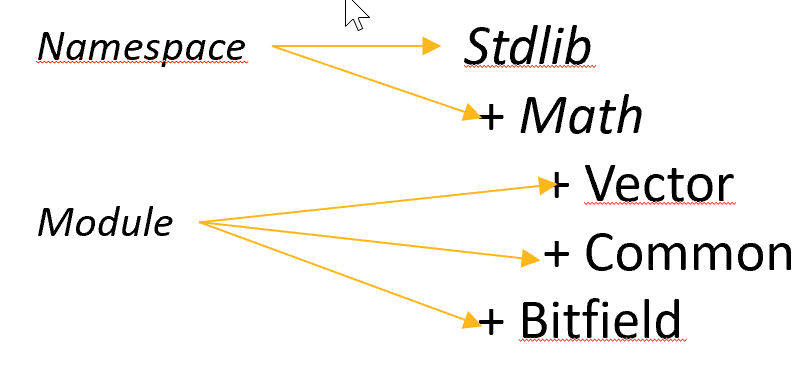

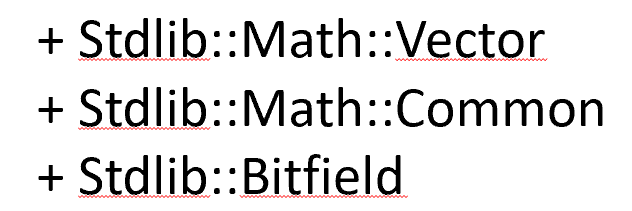

Namespaces as a tree	Namespaces as a flat list

A namespace is serialized in the file system by replacing each :: in the path by a - (see Module).

For example, the body of StdLib::Math::Vector is serialized as StdLib-Math-Vector.swan.

Using a Module

If a declaration from a module M1 is used in a module M2, a use directive must be added in M2 to allow to use declarations of M1.

For example, if a module M needs to use a function from the StdLib::Math::Vector module , the following use directive must be added at the beginning of M:

use StdLib::Math::Vector

and then in M, each element of Vector is prefixed by Vector only, not by the whole path. For example, an operator product defined in StdLib::Math::Vector, will be referenced as Vector::product in M.

The use directive allows to introduce a local alias module. It avoids name collision if two modules have the same name in two different namespaces, or it is a mean to give a shorter name.

use StdLib::Math::Vector as Vec

For example, an operator product defined in StdLib::Math::Vector, will now be referenced as Vec::product in M.

Note: An element of a module M itself, is not and cannot be prefixed by M when used in M.
